Illustrator File Composition

This .AI file contains:

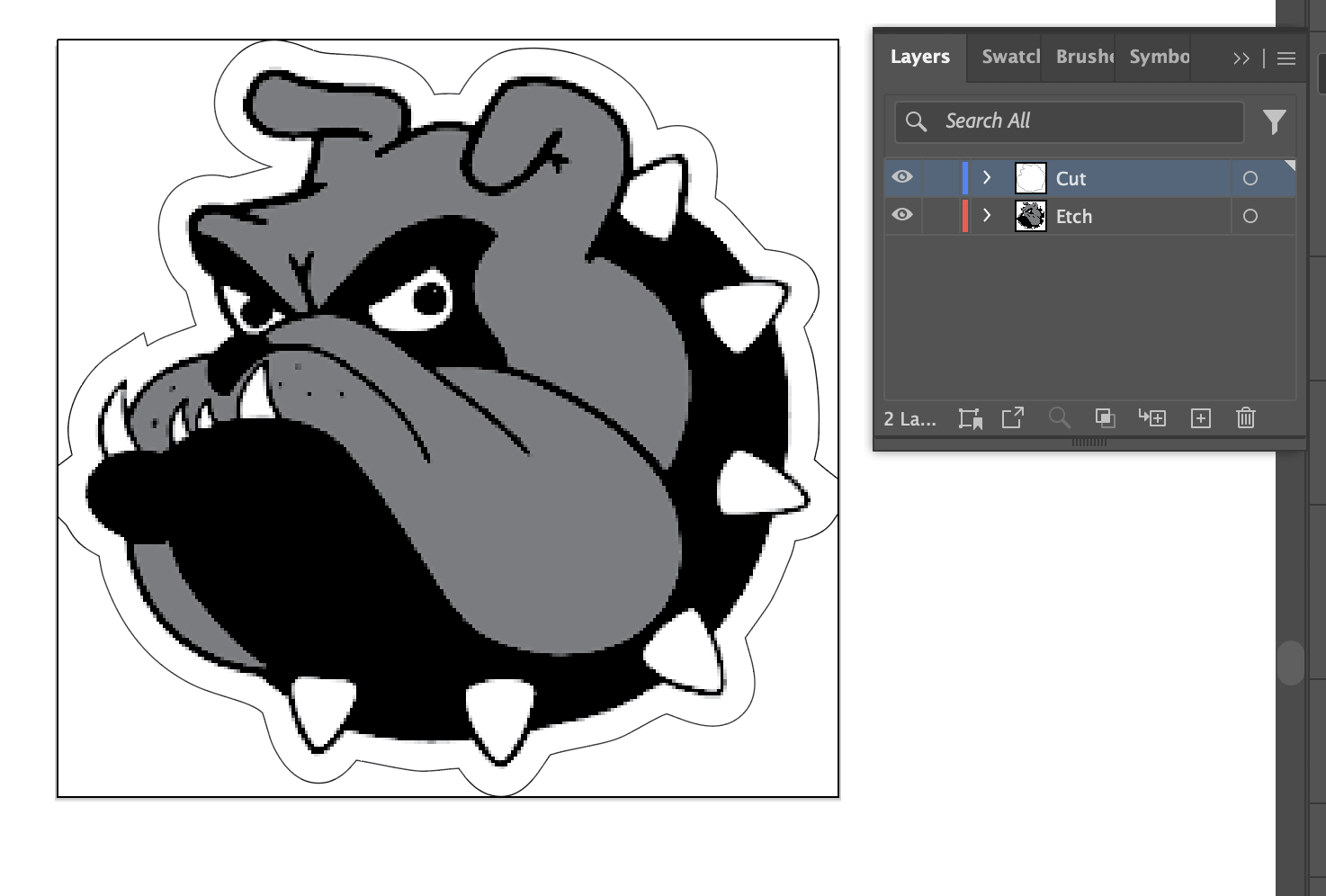

• Vector shapes (such as outlines and labels) placed on a cut layer
• Raster image (the Redlands Bulldog mascot) placed on a layer meant for etching

All objects are embedded and saved with PDF compatibility enabled to ensure accurate import into LightBurn.

Importing into LightBurn

1. Open LightBurn and choose File > Import.
2. Select BulldogLaser.ai and click Open.

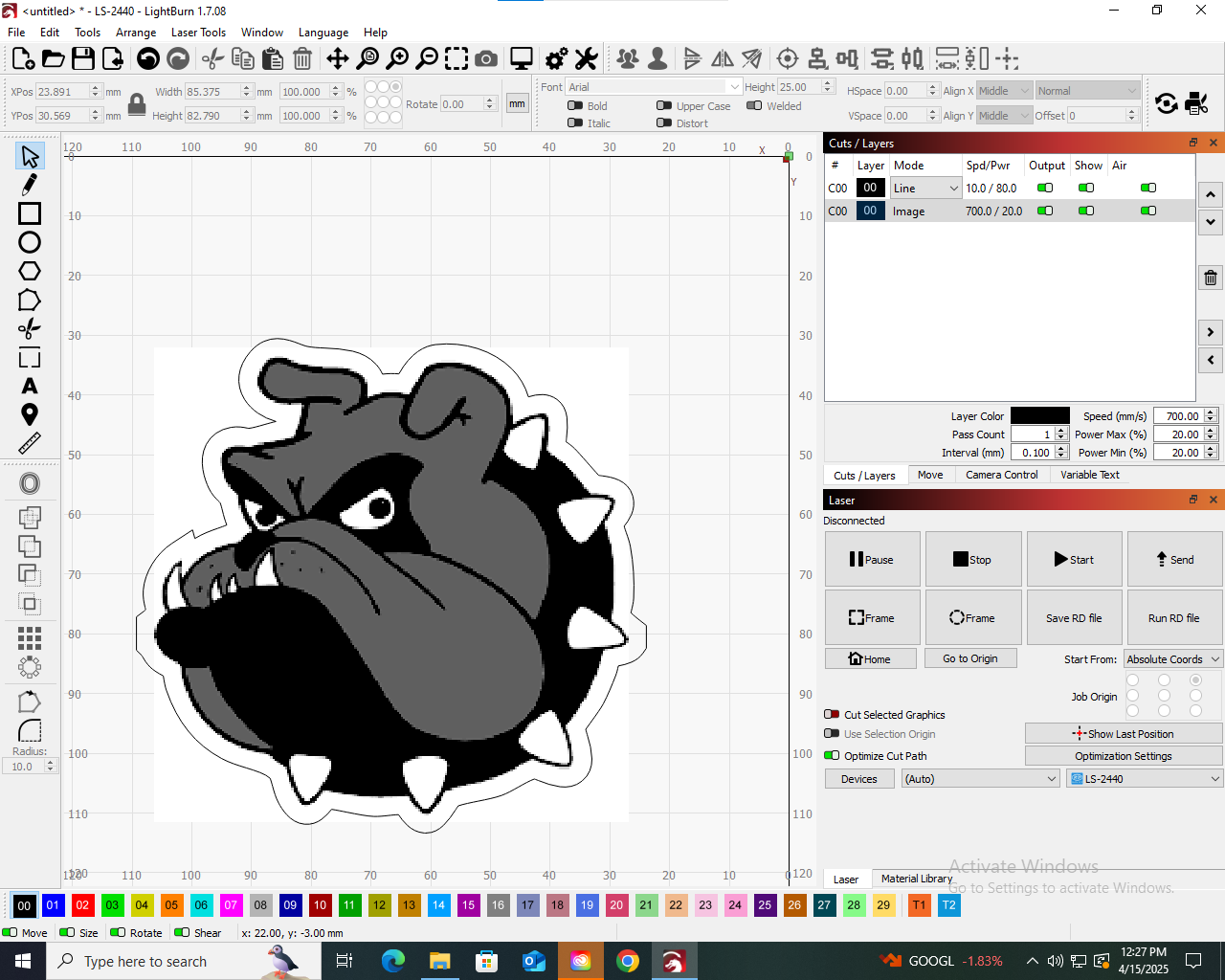

3. Both the raster mascot and the vector outline will appear on your canvas.

Note: The outline shown here includes a 3mm kerf offset for laser cutting alignment.

Layer Visibility and Setup

Once imported, the vector and image components are placed on separate layers in the Cuts / Layers panel. In this example:

• The Image layer is used to etch the mascot graphic.
• The Line layer defines the outline to be cut.

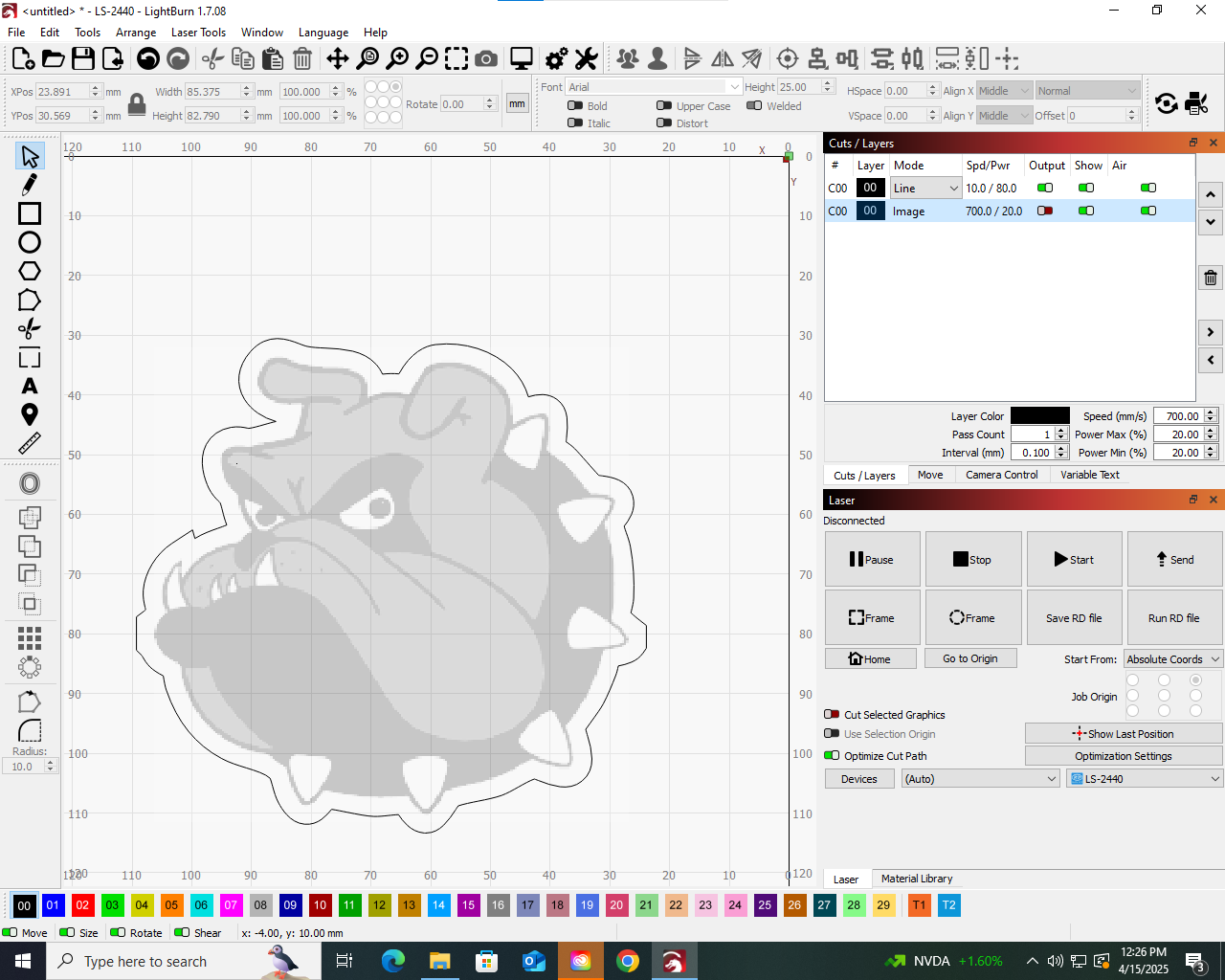

• The etch (image) layer is currently output-disabled (the output toggle is gray) to preview only the cut path.

You can toggle visibility/output and adjust layer settings to sequence the operations appropriately.
